A coastal laneway block gets a modernist Passive House

With a client brief that demanded an innovative and high performance home that also had to be simple and budget conscious, Architect Ben Caine delivered all this and more.

The most challenging aspect of achieving these goals was the tiny block, just 213sqm on a rear laneway in the coastal Perth suburb of Scarborough.

“Amongst the client’s modest desires for a fresh, light, and spacious home with good connection to the outdoors we had to work with an extremely constrained site. The small 15m x 14m block was overshadowed by a two storey high wall on the north boundary which meant that our design strategy had to be perfect.”

The client, a young professional working in commercial construction was highly knowledgeable and demanded best practice when it came to building comfort and performance. The German Passive House standard was the obvious choice for the home.

In order to achieve fundamental solar passive performance the house was positioned on the south boundary to allow winter sun access to the interior for warmth.

“Our solution was to locate the parking in the shade of the neighbours wall. By keeping the carport open to the house, it serves a dual function as a covered outdoor living area and visually extends the depth of the block to create an enhanced feeling of space”.

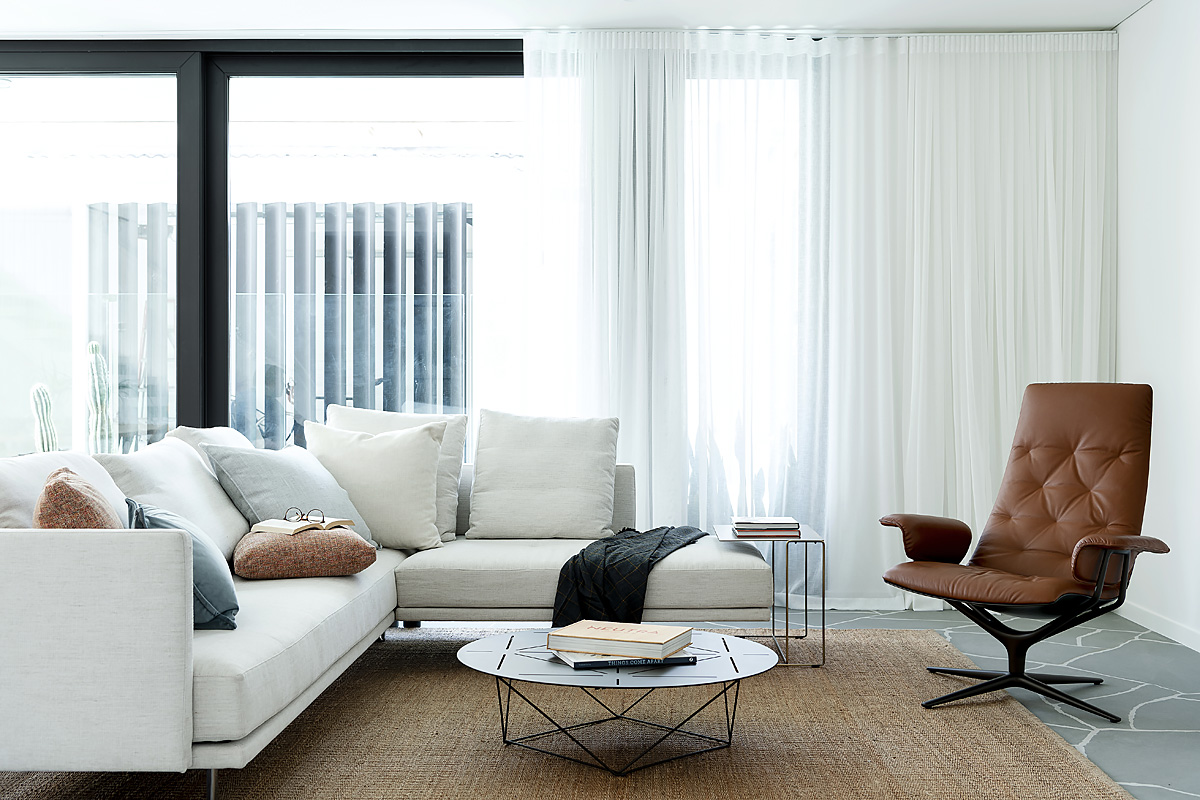

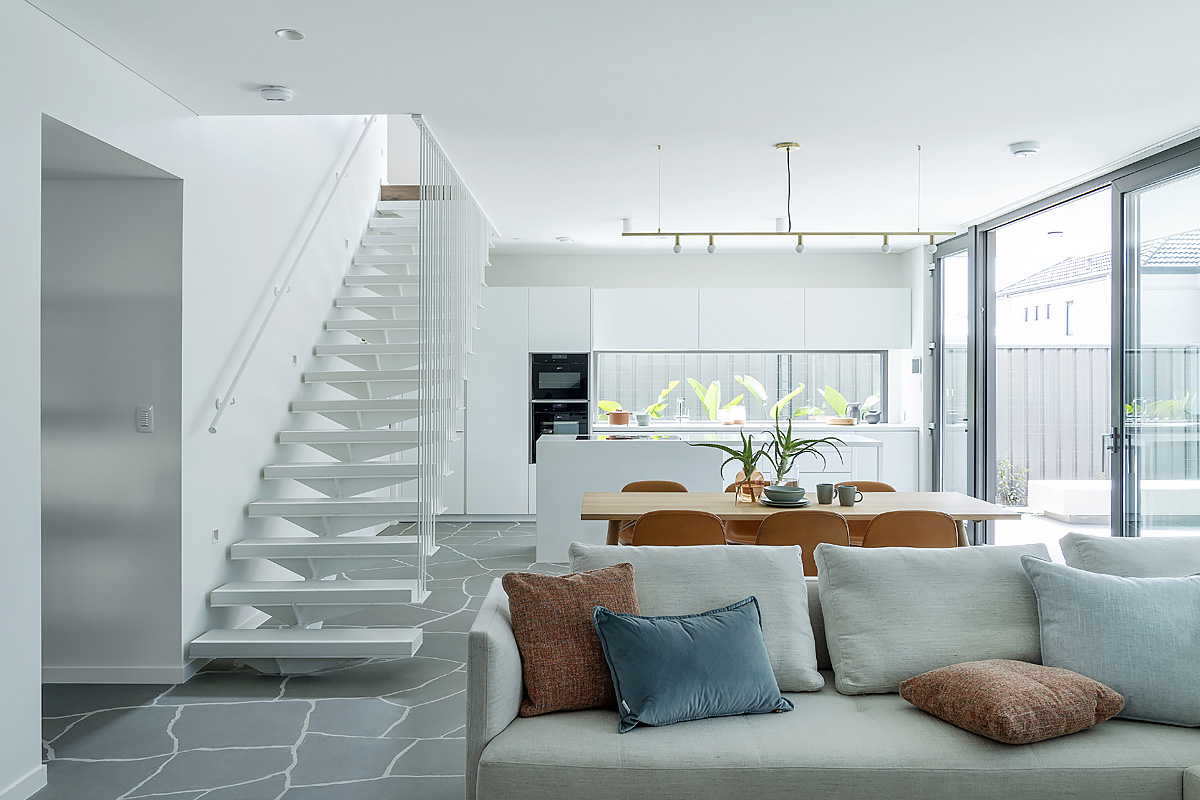

OPEN PLAN LIVINg, year round comfort.

According to the owner, Jason Edmiston; “Temperatures are consistently perfect. Fresh, filtered air fills the house. Electricity bills are now trivial. My house is proof that the science behind Passivhaus is spot on. I don’t know why anyone would be happy to live in anything less.”

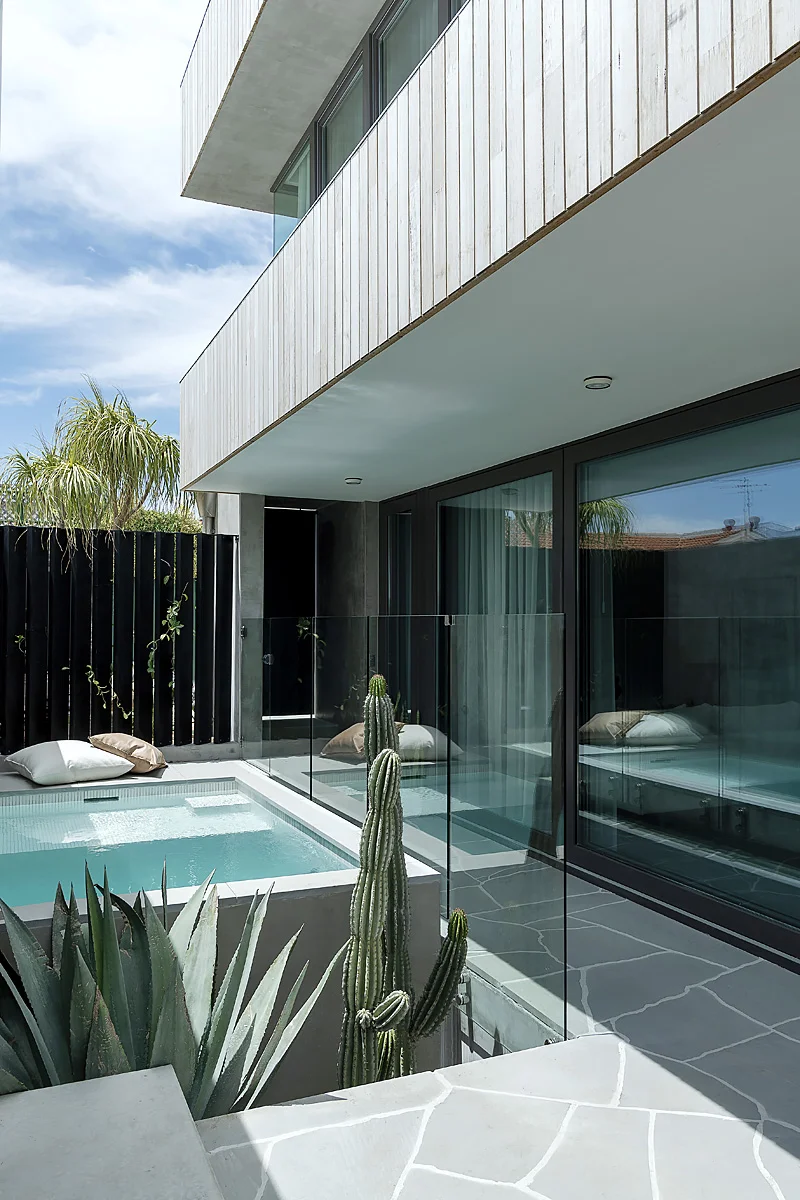

COURTYARD

The minimalist desert influenced landscaping of cactus and succulents compliments to the simple form of the home, and is offset by a small but decadent plunge pool as soon as you enter the space.


NORTH FACING LIVING

Often confused with ‘solar passive’ which is a complimentary design strategy, Passivhaus works on the basis that the home is highly insulated, airtight and efficiently ventilated. Designed to act like a thermos, fresh filtered air is provided continuously to provide an optimum level of comfort without the need for additional heating or cooling and results in energy savings of around 90% compared with Building Code standard homes.


The home is quite unusual in Perth where double brick construction dominates new home construction. ‘Timber framing was the obvious solution. It provides the best balance of sustainability, speed, and thermal performance”, says Ben Caine, Architect

 “Working with the Passivhaus certifier, builder and client we developed a timber construction methodology that can achieve the Passive House standard of performance and airtightness for little more than the cost of a typical home”.

 “Designing a more compact building form also achieves some cost savings, which allow more of the budget to be allocated to the high performance glazing and ventilation system”

 Whilst the home is timber framed, a venetian plaster brick wall fronts the laneway and lends the home some solidity and provides additional fortification from the public laneway adjacent. The courtyard needed to be fully enclosed and secure, but the clever use of the available space means that once inside the home feels both open and private.

Why build a Passivehaus? “The obvious answer is low energy bills, but people most appreciate the other benefits like consistent thermal comfort, sound proofing, and air quality,”
Ground Floor Plan

Ground Floor Plan

First Floor Plan

First Floor Plan

PROJECT STATISTICS:

2 bed + study, 2.5 bathrooms

Lot Area: 213sqm

Built area: 175sqm

Budget: approx. $480k

Certified Passivhaus

HIA Greensmart House

PROJECT TEAM

Architect: Ben Caine, Leanhaus

Builder: Chris Evans, Passiv Building Co.

Structural Engineer: John Velios, Total Structural Solutions

Project Manager/Owner: Jason Edmiston

Interior Designer: Lara Staunton. LAHAUS Creative Studio

Landscape Design: Mon Palmer, Slightly Garden Obsessed

Passivhaus Certifier: Clare Parry, Grün Consulting



Photography: Jody D’arcy

Stylist: Lisa Quinn-Schofield
